Module: Fill Holes 2D ()

Description:

For an introduction, see section Morphology.

This module fills the holes inside particles, irrespective of their size. It works slice by slice.

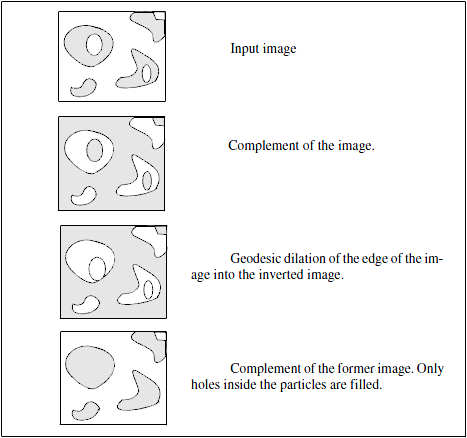

Figure 1: Illustration of the File Holes command

See also: Fill Image Border.

Connections:

Input Image [required]
The image to be processed. Supported types are: binary (Uniform Label Field with 2 labels) and label image (Uniform Label Field).

Ports:

Interpretation

This port specifies whether the input will be interpreted as a 3D volume or a stack of 2D images for processing.

• "3D": the module configuration is set to 3D. The image will be processed as a whole in 3D.
• "XY planes": the module configuration is set to 2D. The image will be processed slice per slice.

Neighborhood Connectivity

This port specifies the connectivity of the filling (4 or 8).
