Load:

Change the color palette of the map.

Load referential information from file header for the map and the T1 MRI.

Apply the T1 MRI referential to the white matter mesh.

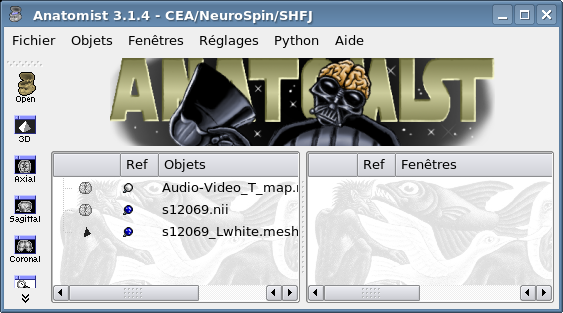

Figure 6.2. After loading referentials

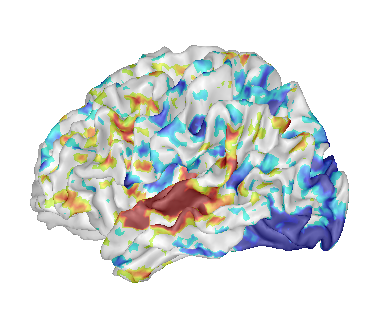

Make a fusion between the mesh and the map (click on ).

Select the Fusion3DMethod and click OK. A new FUSION3D object is created.

Place the FUSION3D object into a .

Right-click on the FUSION3D object, then select Fusion => Control 3d fusion.

Select Fusion mode => Linear and Rate = 50.
