Mesh cut by a fusion between an anatomical MRI and an activation map
- Load:
-
T1 MRI:
data_for_anatomist/subject01/subject01.nii -
Activation map:
data_for_anatomist/subject01/Audio-Video_T_map.nii -
Head mesh:
data_for_anatomist/subject01/subject01_head.mesh
- Load referential information from file header for the 2 volumes.
- Set the referential of the T1 MRI to the head mesh.
- Make a fusion FusionCutMesh between the T1 MRI and the head mesh. A new object CutMesh is created.
-
Put this object CutMesh in a 3D window.
-
Select in this window the Cut Control:
.
-
Move the slice plane: Shift key + middle button + mouse move (rotation) and Ctrl Key + middle button + mouse move.(translation)
-
Make a fusion between the T1 MRI and activation map.
-

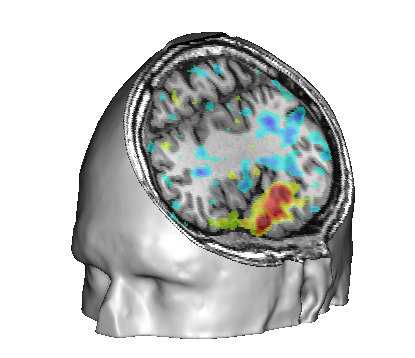

Make a fusion CutMesh between this FUSION2D object et the head mesh and visualize the result.
-

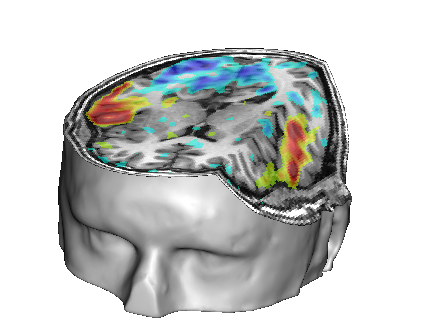

Make a fusion on the CutMesh object alone: it will be cut again by a second slice plane. It is possible to change the orientation of this second plane also.
